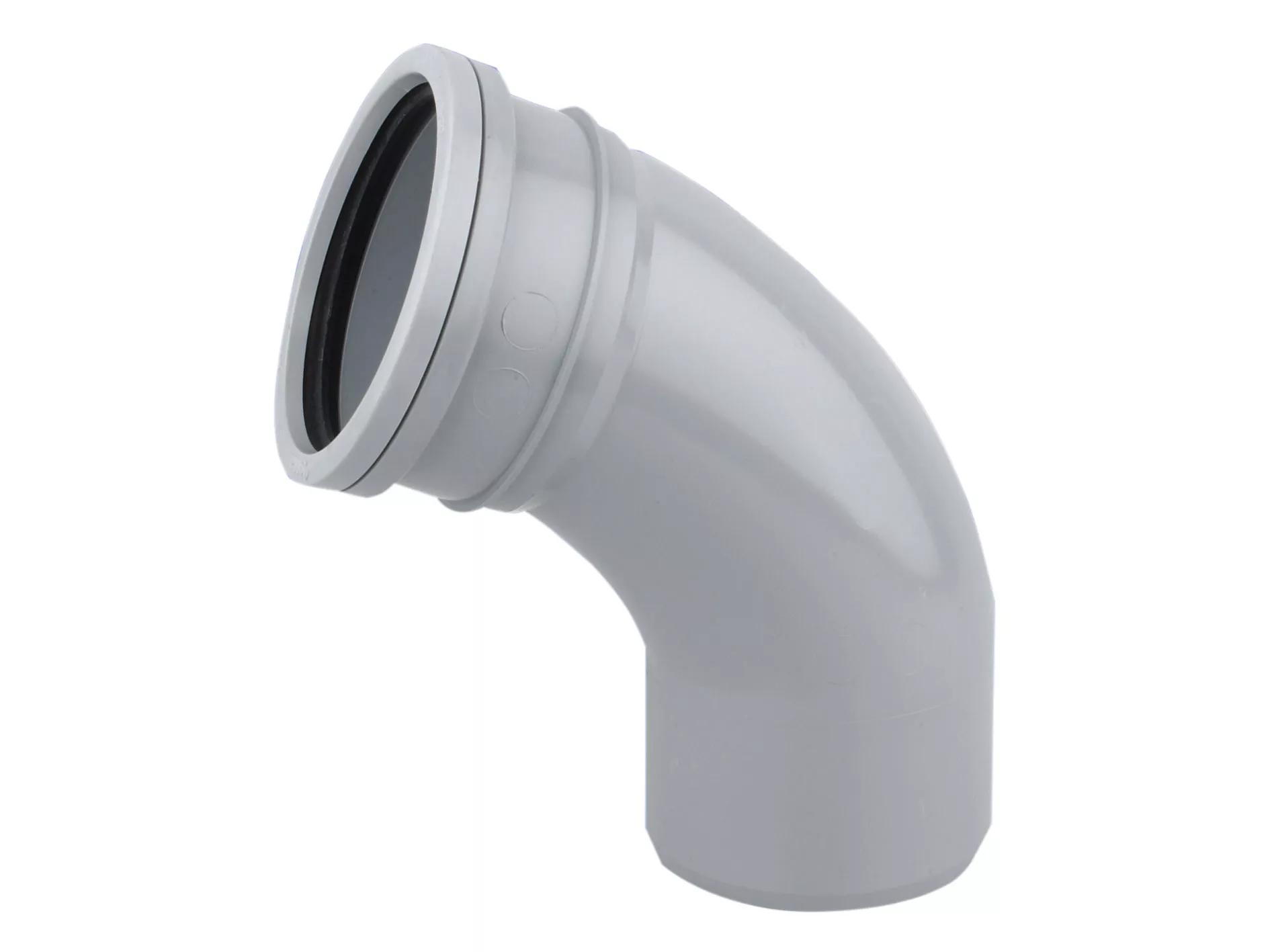

OsmaS PVCU Bend 67.5° GY 110 S/S

1 bag	5 pieces
1 pallet	400 pieces

Product Identifiers

Catalog Code4S162G

EAN Number5011479105146

SAP number3036525

ETIM EC003024 (Fitting with 2 connections)

Label	Value
Surface treatment connection 2	Untreated
Material quality connection 1	PVC-U
Zeta value	0
Nominal diameter connection 1	DN 110
Working length connection 1	0mm
Wall thickness connecting pipe, connection 1	0mm
Connection 1	Slide sleeve
Bend radius	0mm
ULC quality mark	No
Wall thickness connecting pipe, connection 2	0mm
Medium temperature (continuous)	0
Wrench width	0mm
Main colour fitting	Grey
With approval for TÜV	No
Max. operating pressure at max. medium temperature	0bar
Wrench width union nut	0mm
KOMO certified	No
Model	2-part
Connection 2	Slide end
DIN-CERTCO certificate	No
Gastec QA mark	No
DVGW quality mark for gas	No
Material connection 2	Polyvinyl chloride (PVC)
FM quality mark	No
Outer pipe diameter connection 2	0mm
VdS quality mark	No
Outer pipe diameter connection 1	0mm
Wall thickness, connection 2	0mm
High tensile strength	No
With drain valve	No
Material connection 1	Polyvinyl chloride (PVC)
With de-aerator	No
With buffer stud	No
Length of connection 1	0mm
UL quality mark	No
LPCB quality mark	No
Type approval according to BBR/EKS	No
Length	0mm
Surface protection connection 1	Untreated
Material quality connection 2	PVC-U
Bend angle	67.5°
ETIM Classification	EC003024
DVGW quality mark for water	No
Certified according to NF 545	No
Max. operating pressure at 20 °C	0bar
Length of connection 2	0mm
Surface protection connection 2	Untreated
Nominal diameter connection 2	DN 100
Standard Dimension Ratio (SDR)	0
Wall thickness, connection 1	0mm
Surface treatment connection 1	Untreated
Working length connection 2	0mm
With connection indicator	No
Shape	Bend
