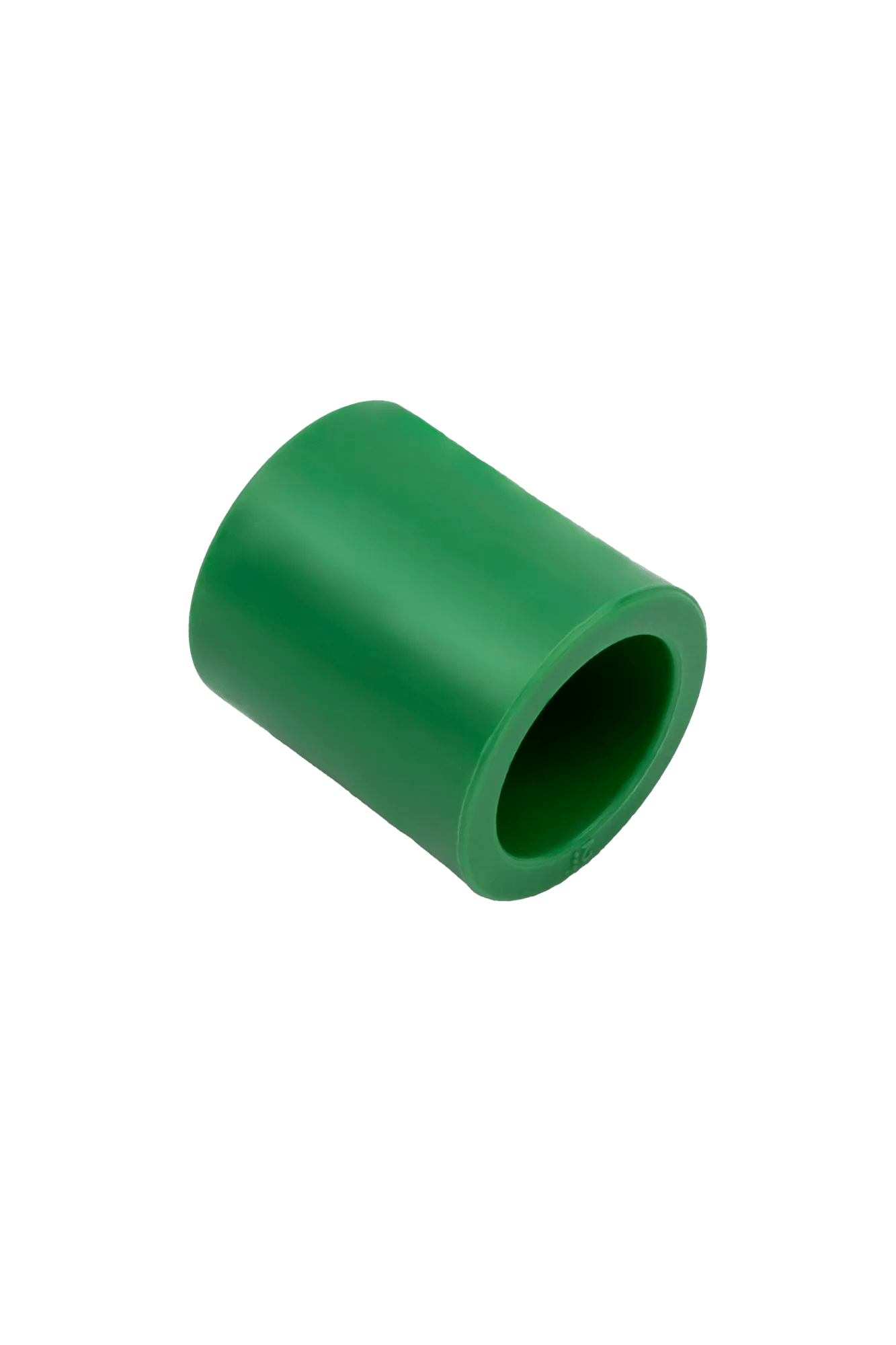

PPR Socket GN 90
| 1 bag | 1 pieces |
|---|---|
| 1 box | 24 pieces |
| 1 pallet | 1440 pieces |
Product Identifiers
Catalog Code541812000031000000
EAN Number8680099047814
SAP number3032776
| 1 bag | 1 pieces |
|---|---|
| 1 box | 24 pieces |
| 1 pallet | 1440 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polypropylene (PP) |
Material quality connection 1 | PP-R |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polypropylene (PP) |
Material quality connection 2 | PP-R |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Model | 1-part |
Bend angle | 0° |
Bend radius | 0mm |
Reducing | No |
Eccentric | No |
System-specific | No |
Nominal diameter connection 1 | DN 90 |
Outer pipe diameter connection 1 | 120mm |
Wall thickness, connection 1 | 15mm |
Connection 1 | Welding connection |
Nominal diameter connection 2 | DN 90 |
Outer pipe diameter connection 2 | 120mm |
Wall thickness, connection 2 | 15mm |
Connection 2 | Welding connection |
Main colour fitting | Green |
Zeta value | 0.2000 |
High tensile strength | No |
Length | 72mm |
Length of connection 1 | 39mm |
Working length connection 1 | 6mm |
Length of connection 2 | 39mm |
Working length connection 2 | 6mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 0 - 75 |
Max. operating pressure at 20 °C | 20bar |
Standard Dimension Ratio (SDR) | 6.0000 |
With sealing rings/gaskets | Yes |
DIN-CERTCO certificate | No |
With approval for TÜV | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | No |
