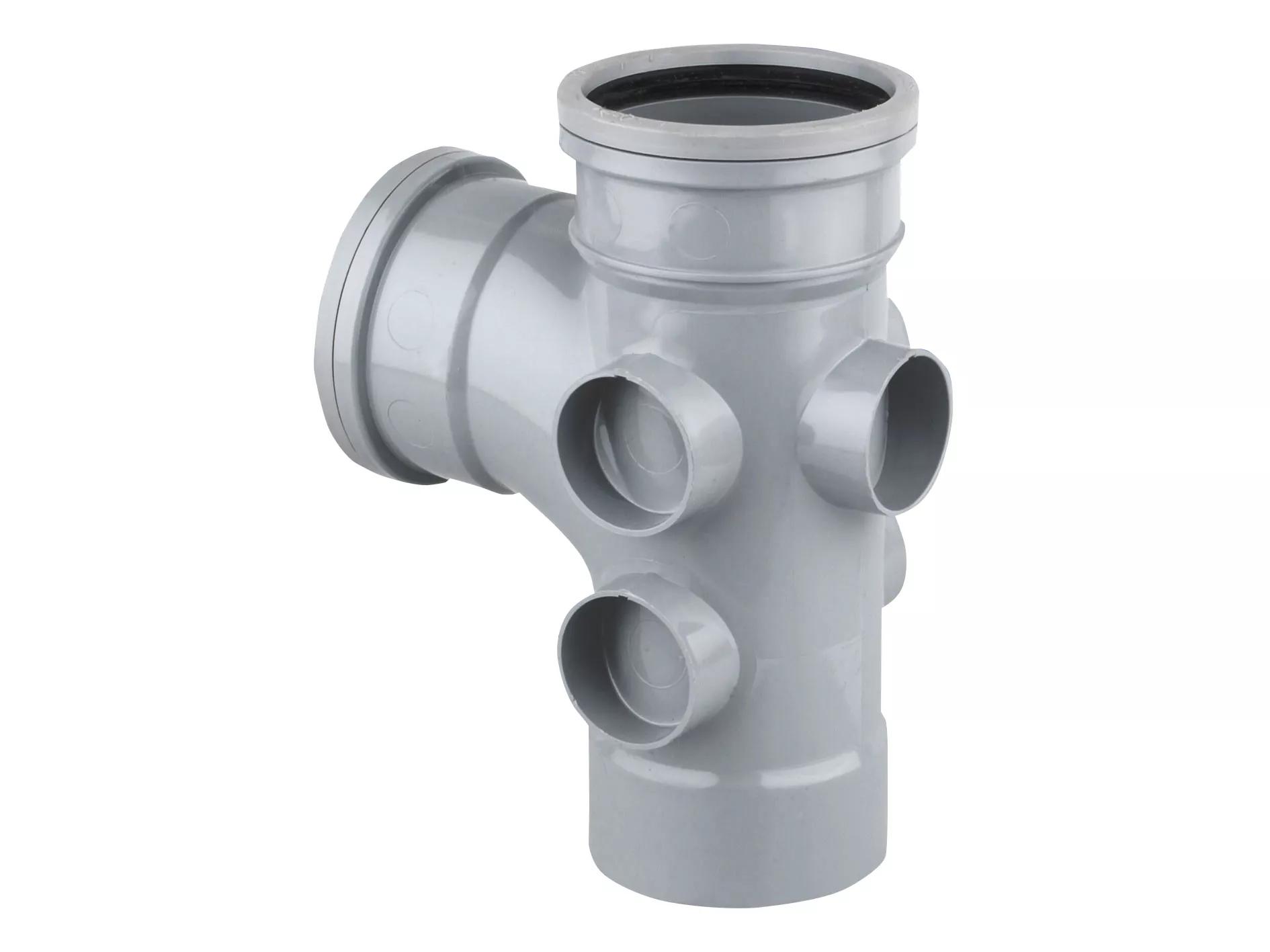

OsmaS PVCU Brch 90° GY 110x110 S/SW
| 1 bag | 5 pieces |
|---|
Product Identifiers
Catalog Code4S395G
EAN Number5011479105566
SAP number3036731
| 1 bag | 5 pieces |
|---|
| Label | Value |
|---|---|
ETIM Classification | EC003025 |
Material connection 1 | Polyvinyl chloride (PVC) |
Material quality connection 1 | PVC-U |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polyvinyl chloride (PVC) |
Material quality connection 2 | PVC-U |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Material connection 3 | Polyvinyl chloride (PVC) |
Material quality connection 3 | PVC-U |
Surface protection connection 3 | Untreated |
Surface treatment connection 3 | Untreated |
Model | Y-piece |
Angle | 87.5° |
Reducing | No |
Multi-part | Yes |
System-specific | No |
Nominal diameter connection 1 | DN 110 |
Outer pipe diameter connection 1 | 118mm |
Wall thickness, connection 1 | 3.5mm |
Connection 1 | Plastic welded end |
Nominal diameter connection 2 | DN 110 |
Outer pipe diameter connection 2 | 132mm |
Wall thickness, connection 2 | 3.5mm |
Connection 2 | Slide sleeve |
Nominal diameter connection 3 | DN 110 |
Outer pipe diameter connection 3 | 132mm |
Wall thickness, connection 3 | 3.5mm |
Connection 3 | Slide sleeve |
Material sealing | NBR (nitrile rubber) |
Main colour fitting | Grey |
Length of connection 1 | 50mm |
Working length connection 1 | 0mm |
Length of connection 2 | 65mm |
Working length connection 2 | 0mm |
Length of connection 3 | 65mm |
Working length connection 3 | 0mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Max. operating pressure at max. medium temperature | 0bar |
Max. operating pressure at 20 °C | 0bar |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | Yes |
With thermal insulation | No |
Capped | No |
Zeta value branch fluent separation according to DVGW W 575 | 0.0000 |
Zeta value gangway current separation according to DVGW W 575 | 0.0000 |
Zeta value counter current separation according to DVGW W 575 | 0.0000 |
Zeta value branch merging flow according to DVGW W 575 | 0.0000 |
Zeta value passage merging flow according to DVGW W 575 | 0.0000 |
Zeta value counter merging flow according to DVGW W 575 | 0.0000 |
